You are here: Products >> Oximeter Details |
|
|
|
|
| Oximeter |
| Name: |

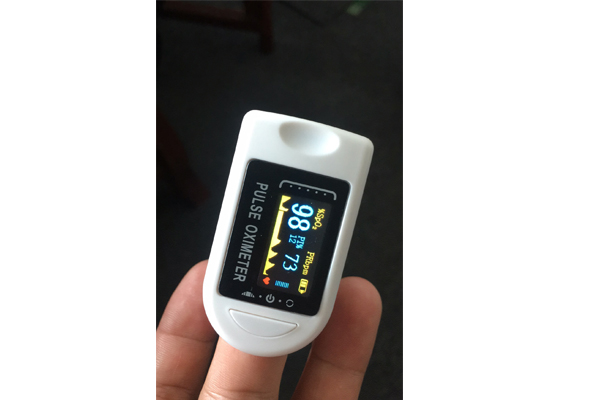

4 colours TFT oximeter |
| Model No: |
HPC01 |
| Brand: |
Pengzhiying |
| Standard: |
|
|
 |
 |
specification:
| SpO2 measurement range |
35% to 100% |
| SpO2 resolution |
1 bpm |
| SpO2 measurement accuracy |
70% to 100% range: ± 2% < 70%: not specified; comply with YY
0784-2010 |
| Method |
Three colour TFT Displayer |
| Pulse rate measurement range |
30 to 250 BPM |
| Pulse rate resolution |
1 bpm |
| Pulse rate measurement accuracy |
70%-99%,±2 bpm |
| Weak perfusion |
＞0.3% |
| TFT Displayer |
Four colour TFT Displayer |
| Battery Specification and quantity |
1.5V (AAA) battery X2 (IEC type LR03) remarks: This product does not include batteries |
| Voltage range |
2.6V～3.6V |
| Working current |
less than 55mA |
| Interface data display |
SpO2, pulse rate, pulse rate wave, pulse amplitude intensity, perfusion degree and electric quantity display |
| Operating temperature |
10℃ ~ 40℃ |
| Storage temperature |
14°F - 104°F (-10℃ ~ 40 ℃) |
| Operation and storage humidity |
0% - 95% without condensation |
| Use and transportation atmospheric pressure limit |
50kPa～106kPa |
| Weight |
30g |
| Specification |
57.4*31.7*32.5mm |
| Certificate |
CE/FDA/FCC/ROHS |
| Packing information |
| Bare weight |
49g |
| Weight with package |
59g |
| Size |
|
| CTN Size |
106*60*50mm |
| N.Weight |
5.9kg |
| G.Weight |
6.5g |
|
 |
|
|
 |
|
|
|
|
