You are here: Products >> IP Camera Details |
|
|
|
|

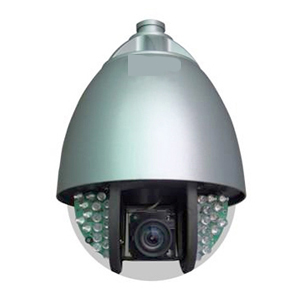

| IP Camera |
| Name: |
IP Camera |
| Model No: |
HPIP-380H |
| Brand: |
|
| Standard: |
|
|
 |
 |
|
Serial no.
|
Type
|
Specification
|
|
227X all-in-one camera
|
Image Sensor
|
1/4 SONY CCD, 420TVL，3.2—86.4mm，0.1LUX / F1.2
|
|
Focus
|
|
Min. illumination
|
|
Day/nigh
|
IR LED
|
24 pcs ∮F10/24mil IR LED, IR distance can reach 80m
|
|
Video
|
Compressed format
|
H.264
|
|
Resolution
|
D1（720×576）、half-D1（576×354）、CIF（352×288）、QCIF（176×144）
|
|
Max frames per second
|
1~30fps@D1(NTSC)
1~25fps@D1(PAL)
|
|
Video Output
|
Analog Signals
|
|
Audio
|
Audio encoding format
|
G.711
|
|
Audio Input
|
Support Sound pickup
|
|
Software
|
WEB IE Browser
|
IE 6.0 or higher
|
|
Security
|
Password protection，3 levels visitors
|
|
Hardware
|
CPU
|
32 Bit ARM9 RISC Core
|
|
Operate System
|
Embedded Linux System
|
|
DDR
|
32M
|
|
Flash memory
|
8M
|
|
Internet
|
Net port
|
10/100M Ethernet port (RJ45)
|
|
Net protocol
|
TCP/IP、UDP、RTP、RTSP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP, SMB/NFS
|
|
PTZ
|
Rotation angle
|
Pan：0-355°Tilt：0-90°auto rotation
|
|
Rotation speed
|
Pan：5－40°/s（you can setup high, middle or lower speed as you like.）
Tilt：5－30°/s（you can setup high, middle or lower speed as you like.）
|
|
Settings
|
Built-in decoder board and protocol, no need to dial code again which means you can use directly
|
|
Preset
|
You can setup 128 presets（according your request to add presets）
|
|
Preset Line
|
8 lines, each line 8 presets
|
|
Function
|
OSD
|
support
|
|
DDNS
|
Have professional Viewipcam.net and many other international famous server for your choosing
|
|
User management
|
Up to 10 viewers can directly access the camera simultaneously. Administrator has the highest authority.
|
|
video adjustment
|
brightness, contrast and saturation，Support Muli-Screen switched (Up to 30 channels for single screen)
|
|
Video shielding/mask
|
Support
|
|
Motion detection
|
You can setup the motion detection area, available time, and sensitivity .
Support 4 way to alarm: Buzz, Notify Client, Trigger Record, Send E-mail.
|
|
Conventional
|
Power supply
|
Input AC 90-240 V 60Hz
Output DC 12V/3A
|
|
Work Environment
|
Temperature：-40 ~ 60 ℃(continuous working) Humidity：20～80％
|
|
Power
|
15W
|
|
Dimension
|
285mm*340mm*515mm
|
|
Weight
|
5.2KG（the object is the standard）
|
|
 |
|
|
 |
|
|
|
|
